Artefacts and Reference Standards forCoordinate Measuring Technology
DAkkS Calibrated Artefacts and Reference Standards for Coordinate Measuring Technology directly from eumetron
Artefacts and reference standards are essential for monitoring the measuring instruments used in your company. They are the prerequisite for correct and reliable measurement results and thus the basis for a stable production process.
A reduction in the measurement uncertainty contributes directly to increasing the usable manufacturing tolerance and to reducing your manufacturing costs.
Artefacts in Detail
CMM-Check 2.0
When working with coordinate measuring machines, a regular intermediate test of your CMM is essential.
eumetron offers one newly developed artefact
with DAkkS calibration.

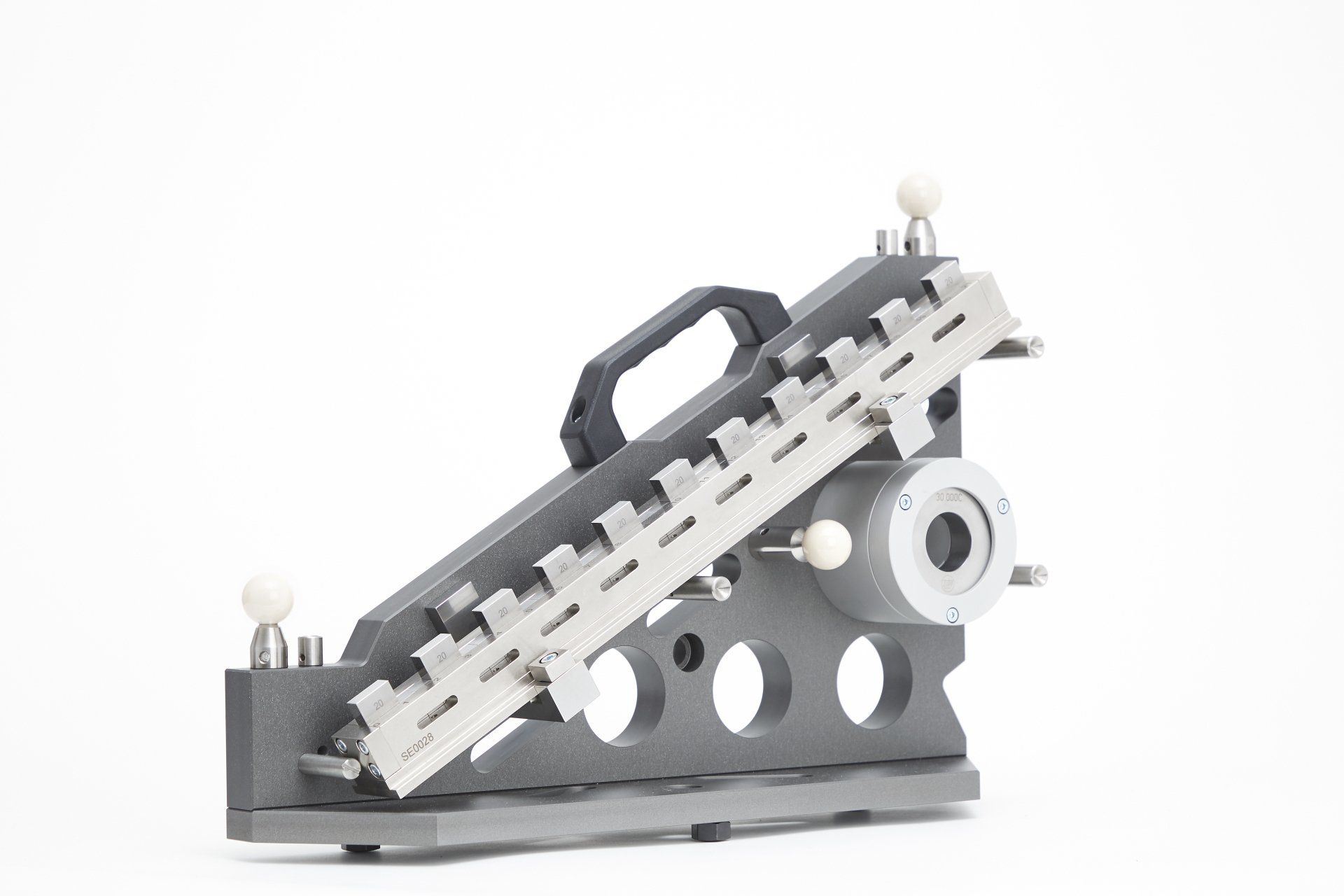

The "CMM-Check 2.0" is a modular artefact, developed to meet the specifications of DIN EN ISO 10360 and
The "CMM-Check 2.0" is a modular artefact, developed to meet the specifications of DIN EN ISO 10360 and
VDI / VDE 2617.
The basis of the artefact is a rigid body, on which high-precision, calibrated measuring standards are attached.
Your advantages:
For details about the scope of calibration and measurement uncertainties see: Price list calibration services
The basis of the artefact is a rigid body, on which high-precision, calibrated measuring standards are attached.
Your advantages:
- Reliable measurement results by regular monitoring and after collisions
- Fast, comprehensive and standardized monitoring
- DAkkS calibrated standards
- Special evaluation software for CALYPSO
- Evaluation with monitoring factors
- Safe construction and variable orientation of the artefact
- One license for all CMM
For details about the scope of calibration and measurement uncertainties see: Price list calibration services
Multi-Feature-Check
If you work with coordinate measuring machines and you need a method to determine the measurement uncertainty and test process suitability of inspection characteristics, the Multi-Feature-Check offers examples for the shape, dimension and position tolerance.
The Multi-Feature-Check
- is DAkkS calibrated and traceable to national standards
- has many different test characteristics
- is made of a workpiece-like or similar material
- has the same or similar surface finish as a workpiece
Temperature Resistant Standards
If you work with coordinate measuring machines and you need temperature-stable or special components.
Since mid 2017, eumetron has been the official distributor of Krosaki Harima Inc., Japan. Krosaki Harima Inc. manufactures products made of temperature-stable ceramic cordierite, brandname "Nexcera".
Nexcera has a thermal expansion coefficient of α = 0.
We are happy to prepare individual quotations for your reference standards and special components made of Nexcera.
eumetron GmbH, in cooperation with Krosaki Harima Inc, offers the following Nexcera standard products for coordinate measuring machines:

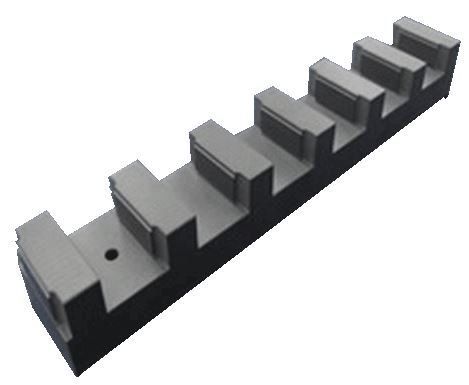

- Step gauges, in the dimensions from 300 to 1000 mm

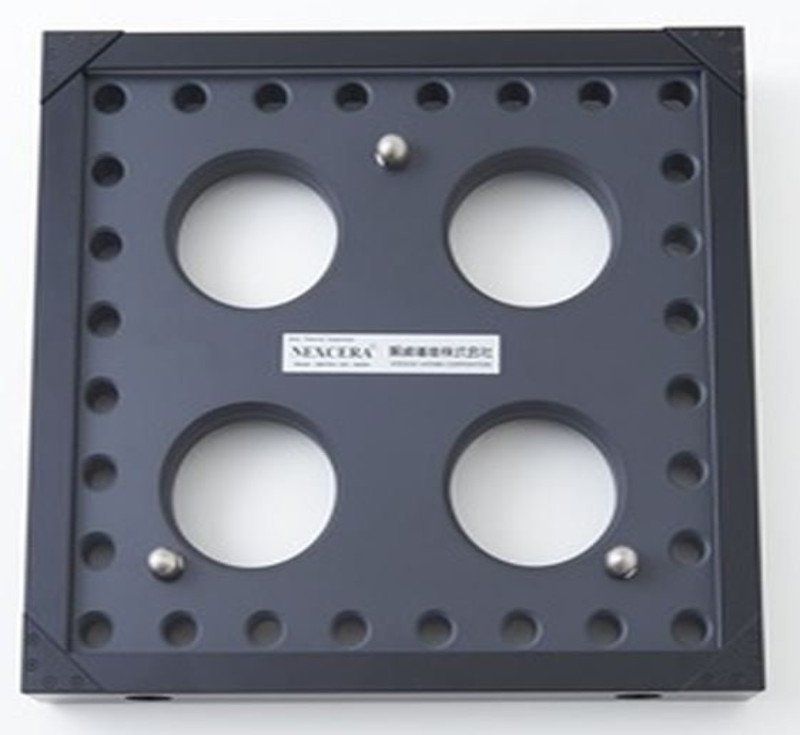

- Hole plates and ball plates
- Spheres (for tactile and optical applications)
- Gauge blocks
- as well as special components and other workpieces
